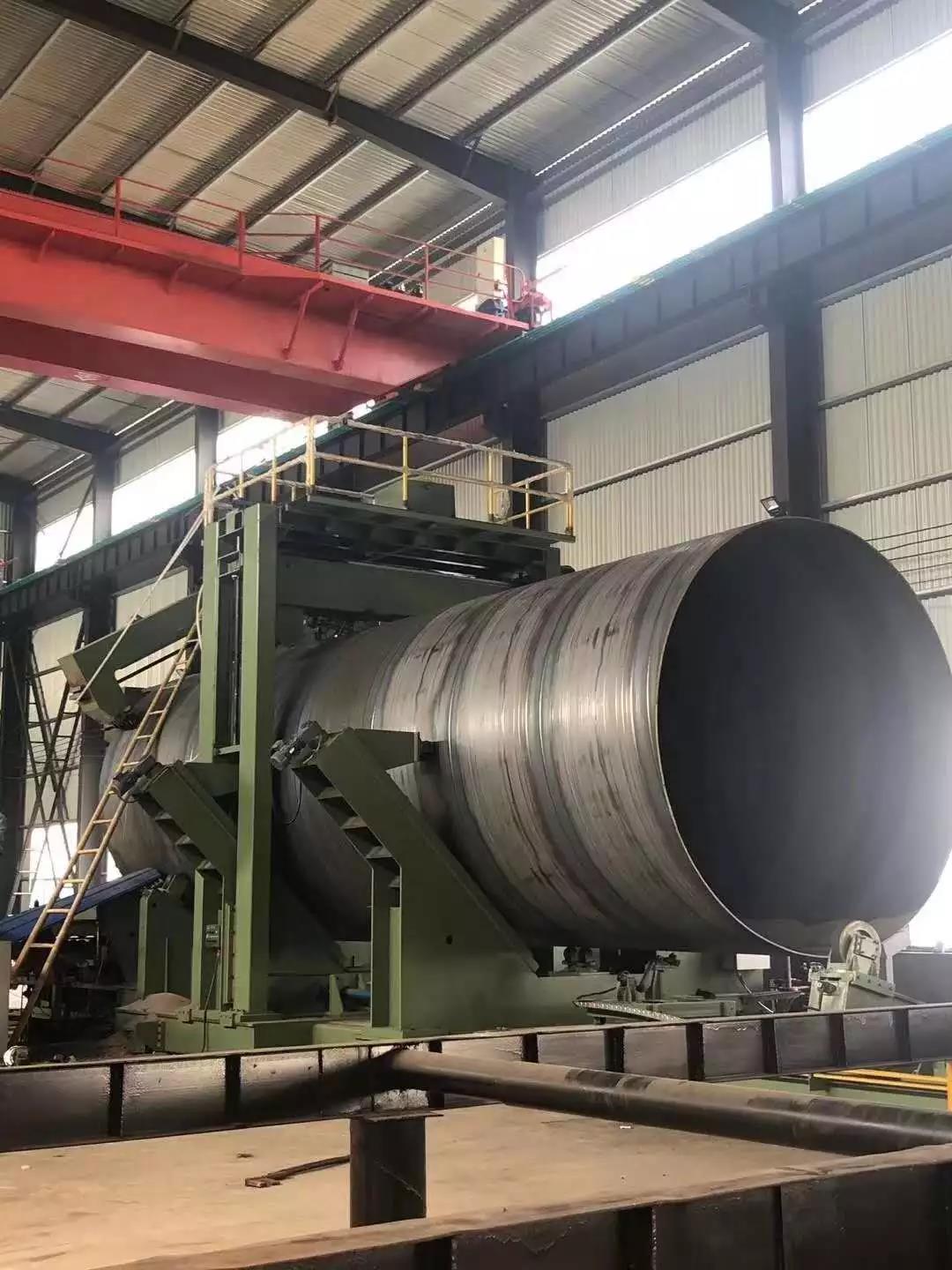

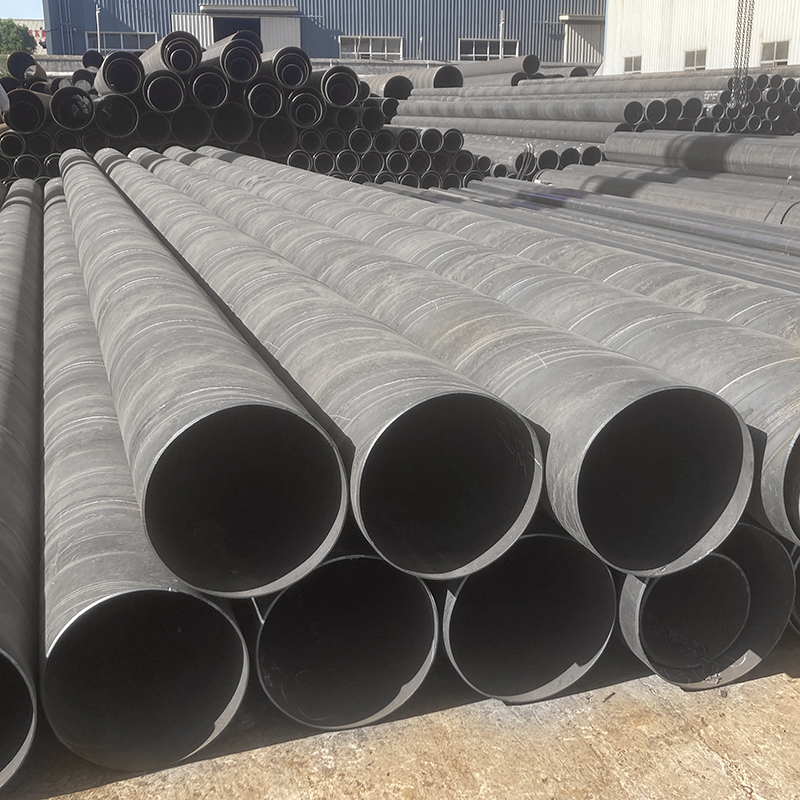

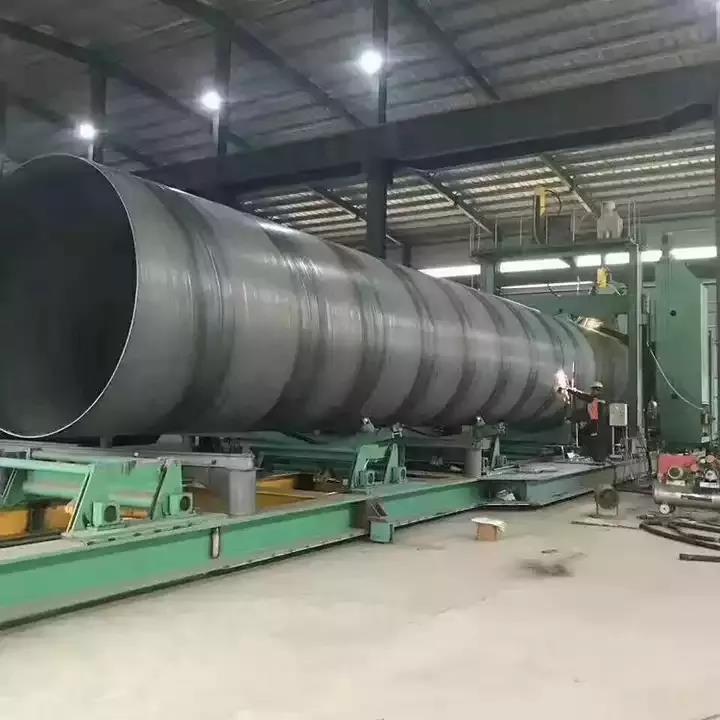

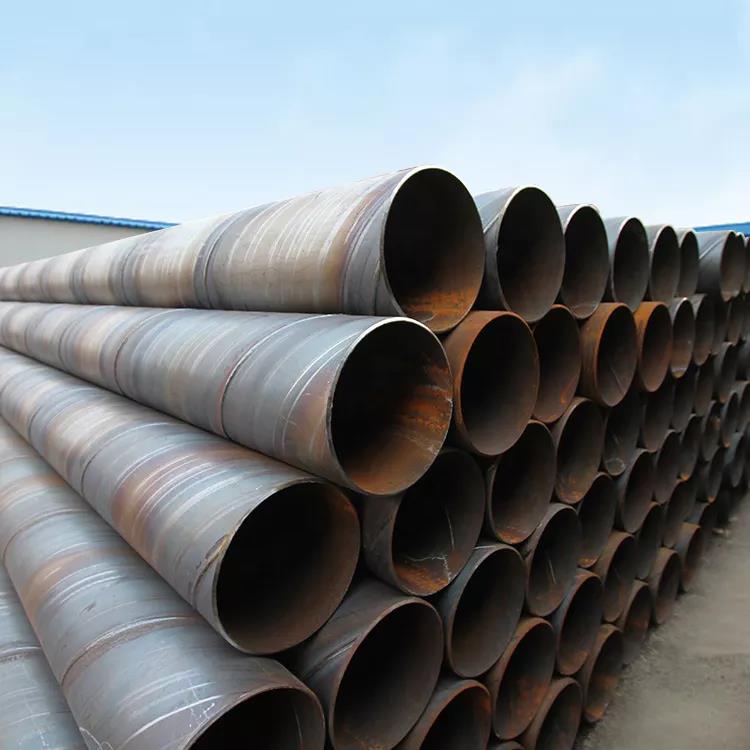

Submerged Arc Welded Spiral steel Pipe SSAW

Name: Submerged Arc Welded Spiral steel Pipe SSAW
SKU: 0

The spiral submerged arc welded pipe is made of hot-rolled steel strip through constant temperature spiral forming and automatic submerged arc welding. The manufacturing process is to roll the steel strip, make the rolling direction at a certain angle to the center direction of the tube, and then form and weld, so the weld is spiral.

WhatsApp ：+86 159 6454 8233

Email : systeel@shouyuansteelgroup.com

INQUIRY

RELATED PRODUCTS

Product Video

Product Parameter

Product Show

Product Features

Application

Packing & Delivery

Customer Feedback

FAQ

Product Video

Product Parameter

Product Name	Spiral Submerged Arc Welded Pipe SSAW
Standard	EN/DIN/JIS/ASTM/BS/ASME/AISI etc.
Outer Diameter	219.1mm-3580mm
Wall Thickness	3.2mm-25.4mm
Length	5.8 meters-12.5 meters, Support customization
Manufacturing Type	Spiral Welding
Certification	CE, ISO,SGS,ETC
MOQ	25 -28 tons, A Container
Payments	T/T, L/C, Western union, Paypal, DP, etc
Application	Structure, Electric power transmission tower projets, Piling, Water, Oil & gas pipeline engineering, Mechanical industry,Municipal projects, Roads and its auxiliary facilities, etc.
Port	Qingdao ,Tianjin ,Shanghai

Product Material

Standard	Material
GB/T3091	Q235B, Q345A, Q345B
GB/T9711-2011	L210, L245, L290, L320, L360, L390, L415, L450, L485
API 5L PSL1	Gr.A, Gr.B, X42, X46, X52, X56, X60, X65, X70, X80
API 5L PSL2	Gr.B, X42, X46, X52, X56, X60, X65, X70, X80
EN10217	P235TR1, P235TR2, P265TR1, P265TR2
ASTM A252	A252 Gr.2 , A252 Gr.3

Chemical Composition & Mechanical Properties

Standard	Grade	Chemical Composition(%)					Mechanical Properties(min)
Standard	Grade	C	Si	Mn	P	S	Tensile Strength(Mpa)	Yield Strength(Mpa)
API 5CT	h40	-	-	-	-	0.030	417	417
	J55	-	-	-	-	0.030	517	517
	K55	-	-	-	-	0.300	655	655
API 5L PSL1	A	0.22	-	0.90	0.030	0.030	335	335
	B	0.26	-	1.20	0.030	0.030	415	415
	X42	0.26	-	1.30	0.030	0.030	415	415
	X46	0.26	-	1.40	0.030	0.030	435	435
	X52	0.26	-	1.40	0.030	0.030	460	460
	X56	0.26	-	1.40	0.030	0.030	490	490
	X60	0.26	-	1.40	0.030	0.030	520	520
	X65	0.26	-	1.45	0.030	0.030	535	535
	X70	0.26	-	1.65	0.030	0.030	570	570
API 5L PSL2	B	0.22	0.45	1.20	0.025	0.015	415	415
	X42	0.22	0.45	1.30	0.025	0.015	415	415
	X46	0.22	0.45	1.40	0.025	0.015	435	435
	X52	0.22	0.45	1.40	0.025	0.015	460	460
	X56	0.22	0.45	1.40	0.025	0.015	490	490
	X60	0.12	0.45	1.60	0.025	0.015	520	520
	X65	0.12	0.45	1.60	0.025	0.015	535	535
	X70	0.12	0.45	1.70	0.025	0.015	570	570
	X80	0.12	0.45	1.85	0.025	0.015	625	625
ASTM A53	A	0.25	0.10	0.95	0.050	0.045	330	330
ASTM A53	B	0.30	0.10	1.20	0.050	0.045	415	415
ASTM A252	1	-	-	-	0.050	-	345	345
	2	-	-	-	0.050	-	414	414
	3	-	-	-	0.050	-	455	455
EN10217-1	P195TR1	0.13	0.35	0.70	0.025	0.020	320	320
	P195TR2	0.13	0.35	0.70	0.025	0.020	320	320
	P235TR1	0.16	0.35	1.20	0.025	0.020	360	360
	P235TR2	0.16	0.35	1.20	0.025	0.020	360	360
	P265TR1	0.20	0.40	1.40	0.025	0.020	410	410
	P265TR2	0.20	0.40	1.40	0.025	0.020	410	410
EN10217-2	P195GH	0.13	0.35	0.70	0.025	0.020	320	320
	P235GH	0.16	0.35	1.20	0.025	0.020	360	360
	P265GH	0.20	0.40	1.40	0.025	0.020	410	410
EN10217-5	P235GH	0.16	0.35	1.20	0.025	0.020	360	360
EN10217-5	P265GH	0.20	0.40	1.40	0.025	0.020	410	410
EN10219-1	S235JRH	0.17	-	1.40	0.040	0.040	360	360
	S275JOH	0.20	-	1.50	0.035	0.035	410	410
	S275J2H	0.20	-	1.50	0.030	0.030	410	410
	S355JOH	0.22	0.55	1.60	0.035	0.035	470	470
	S355J2H	0.22	0.55	1.60	0.030	0.030	470	470
	S355K2H	0.22	0.55	1.60	0.030	0.030	470	470

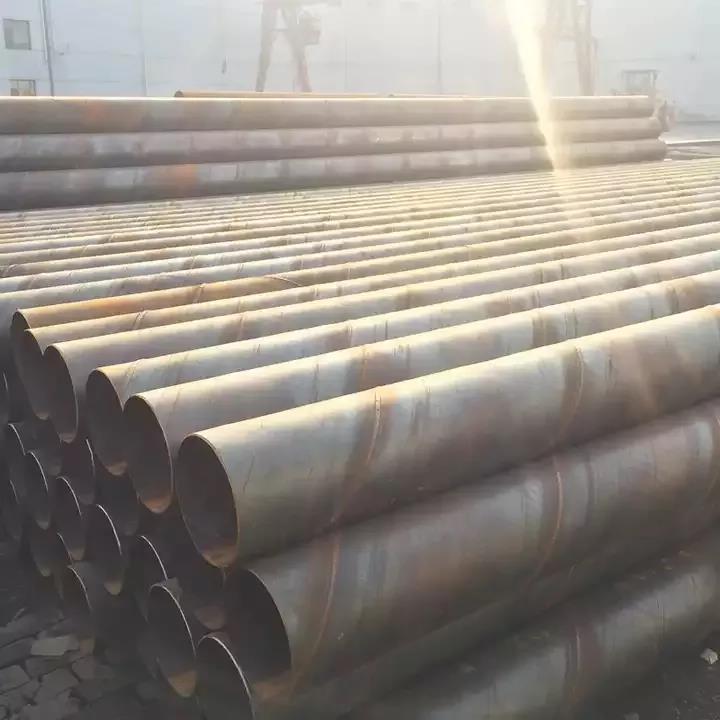

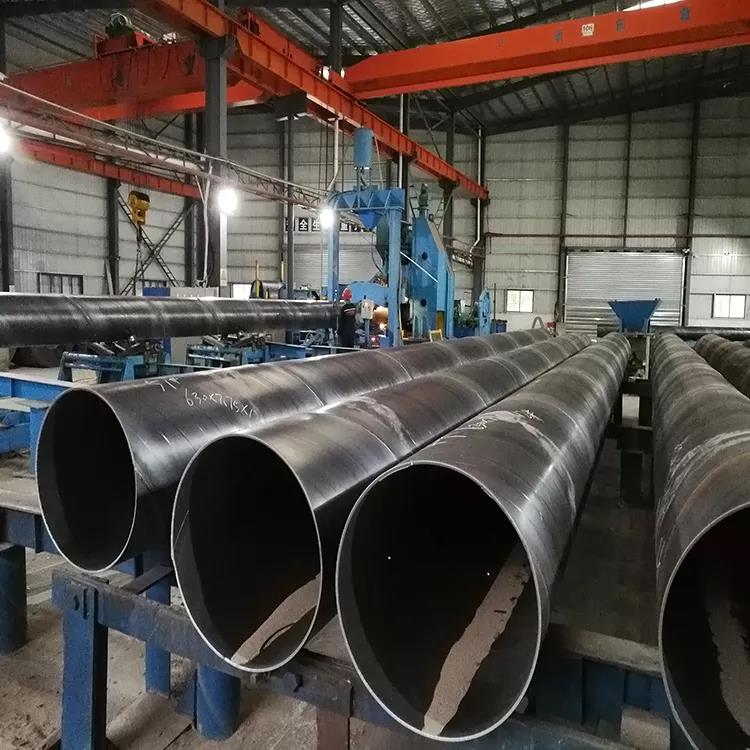

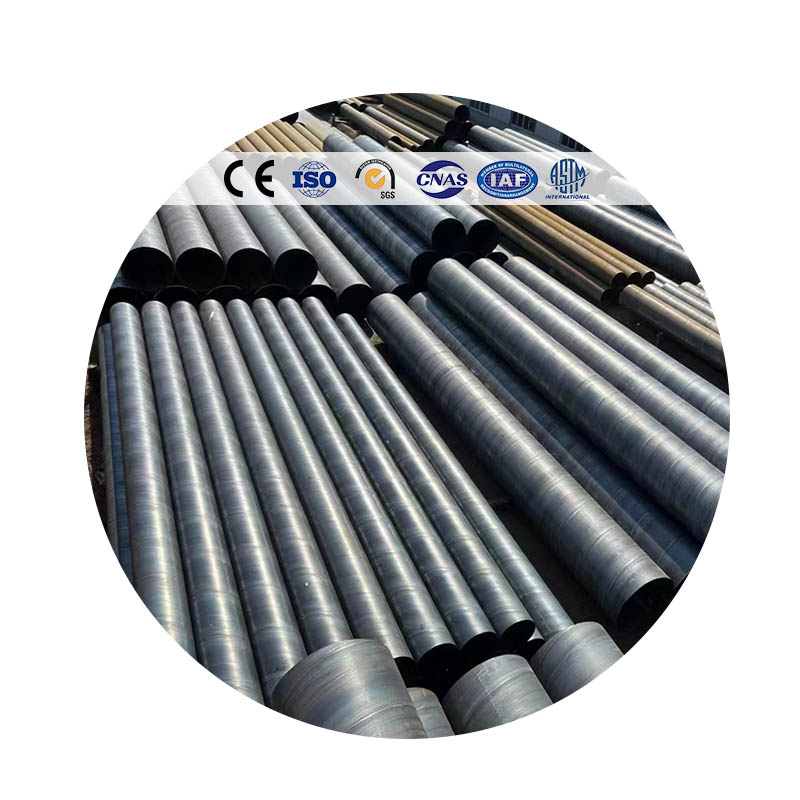

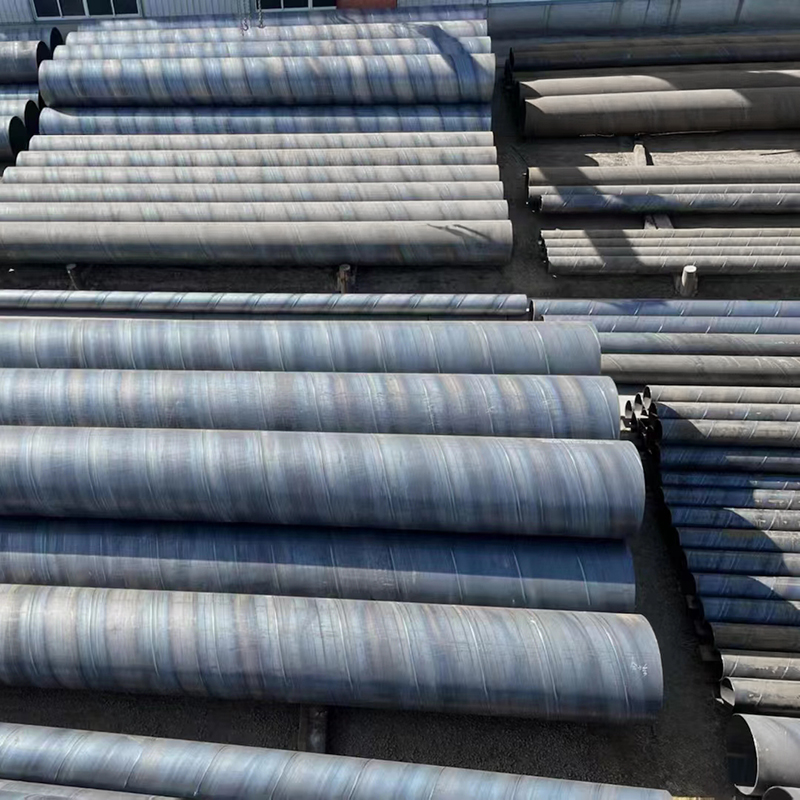

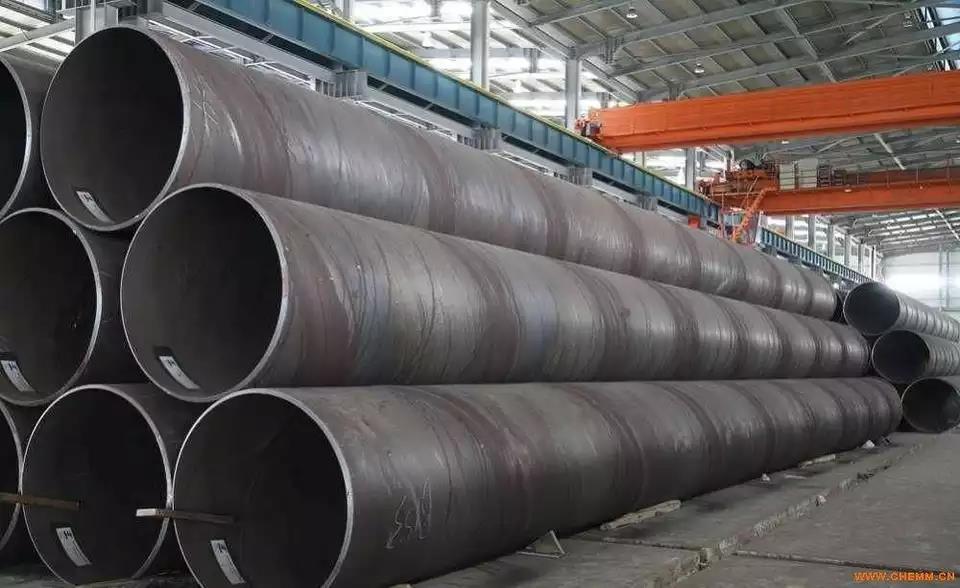

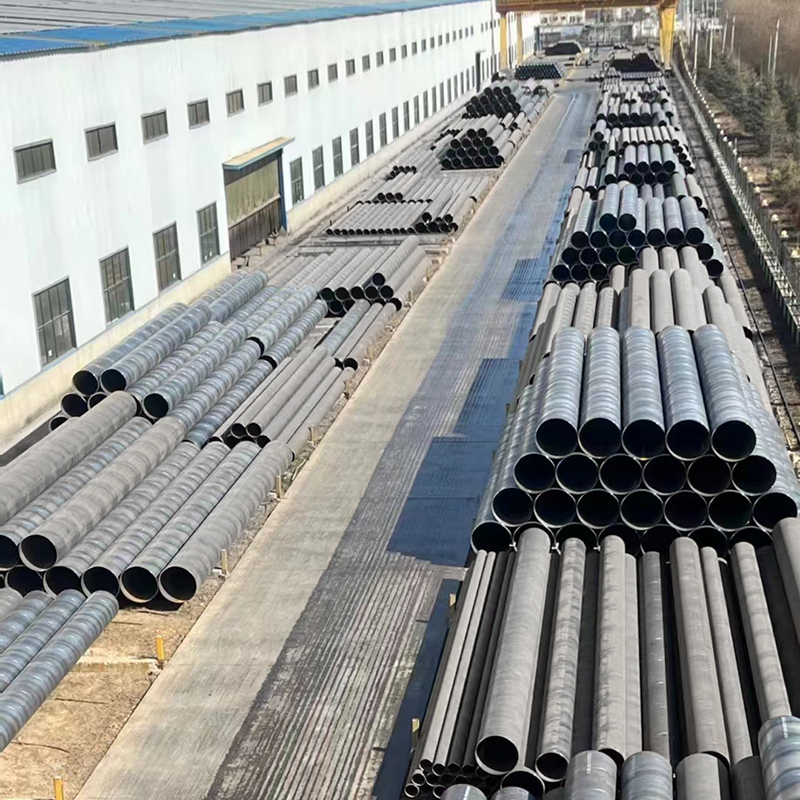

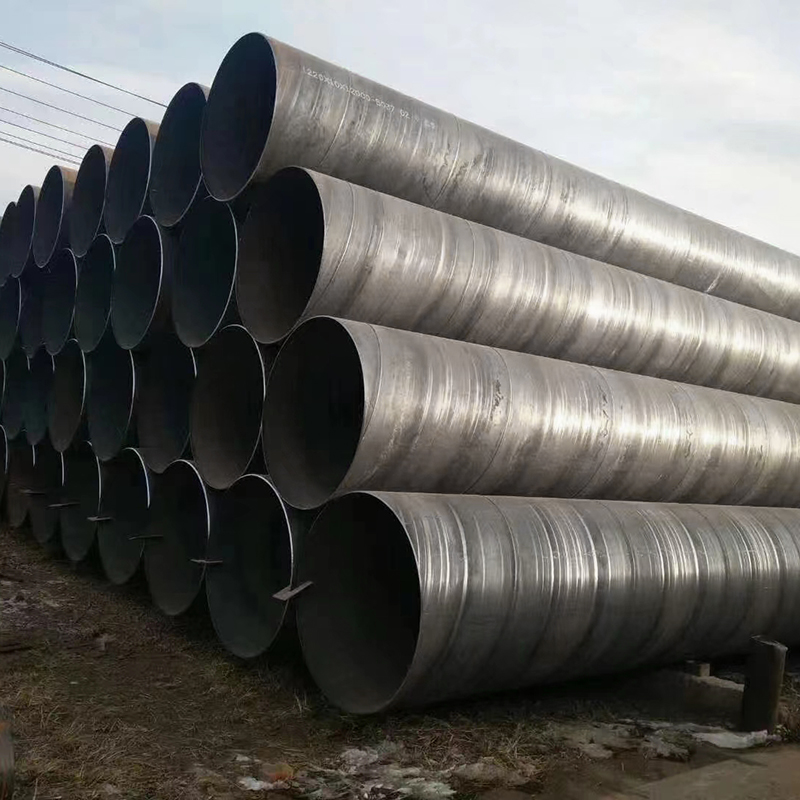

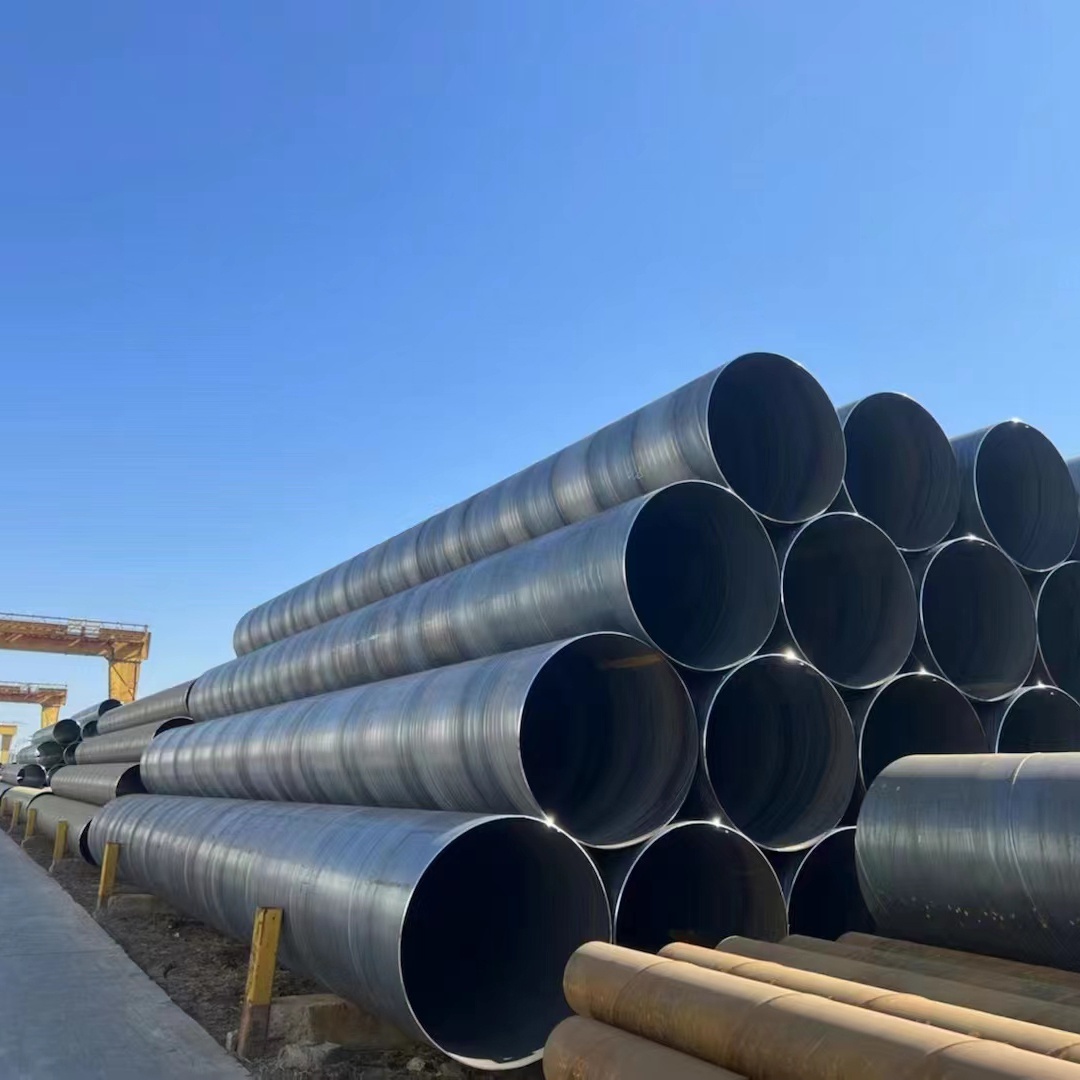

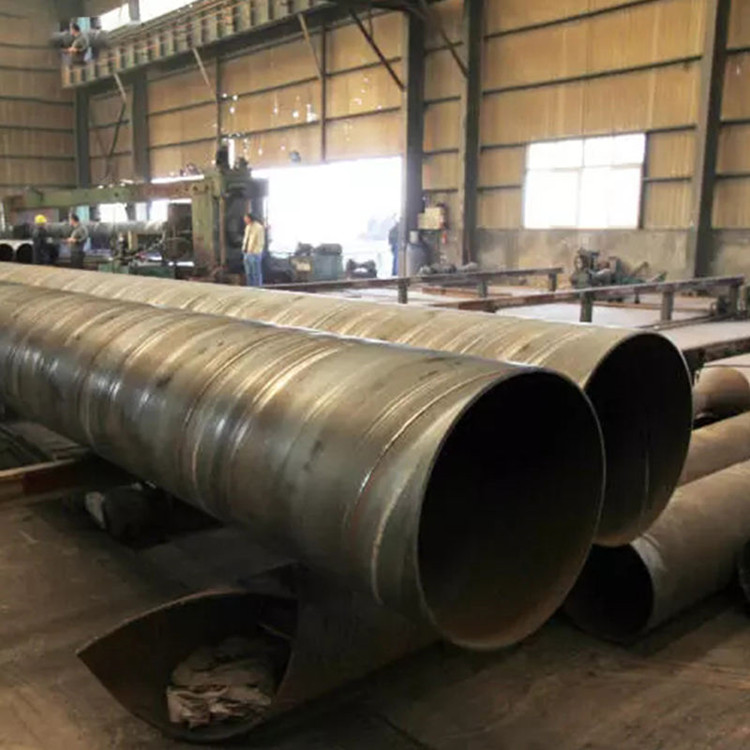

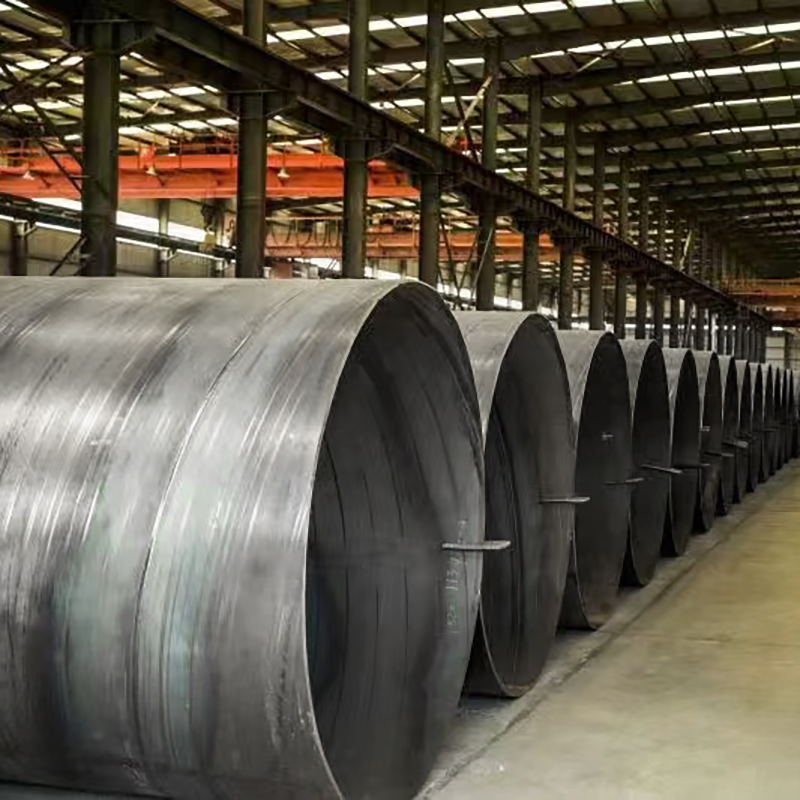

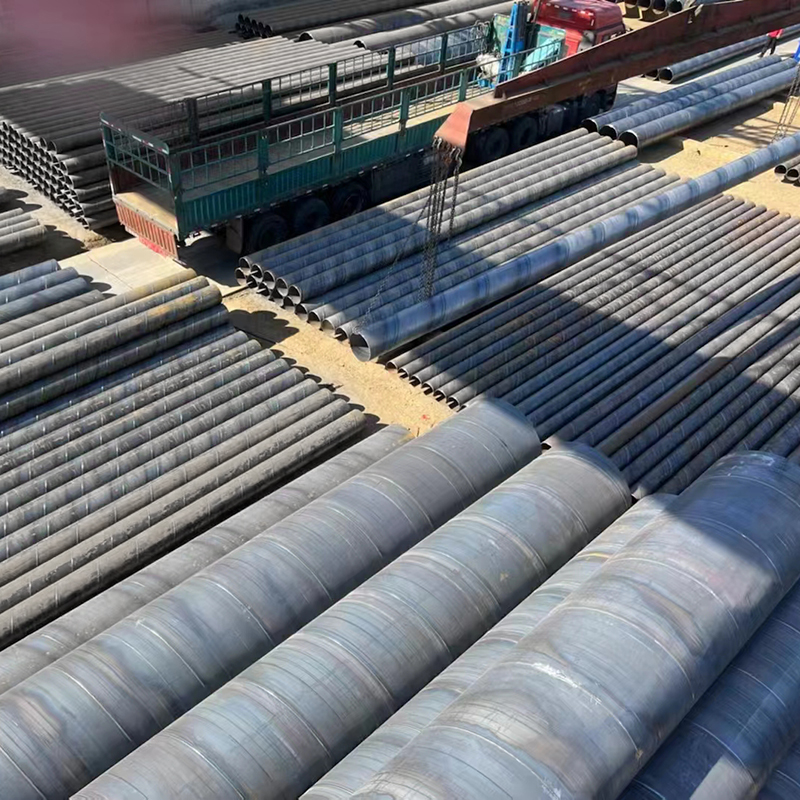

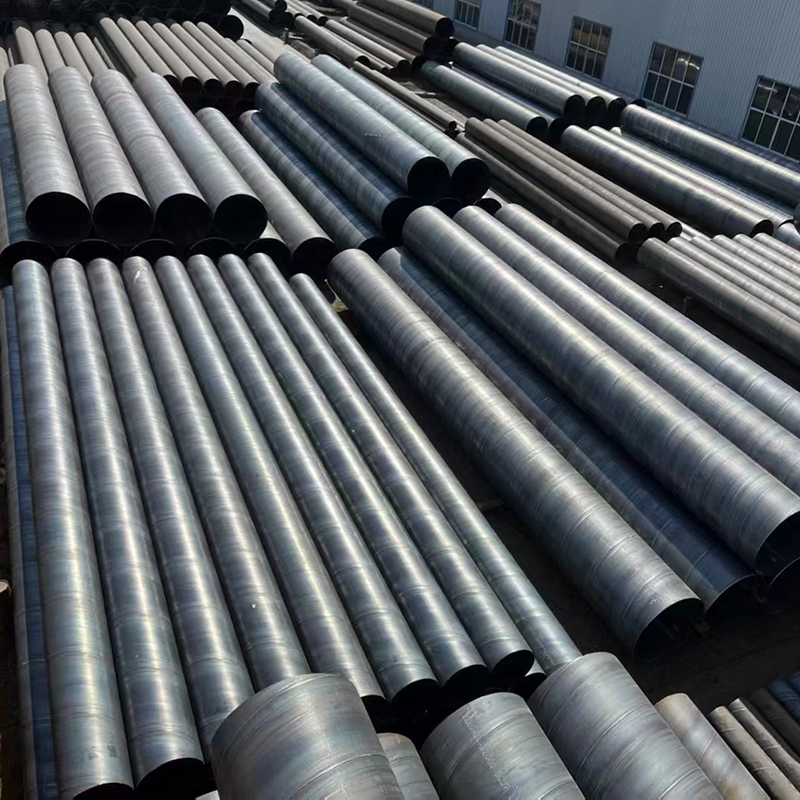

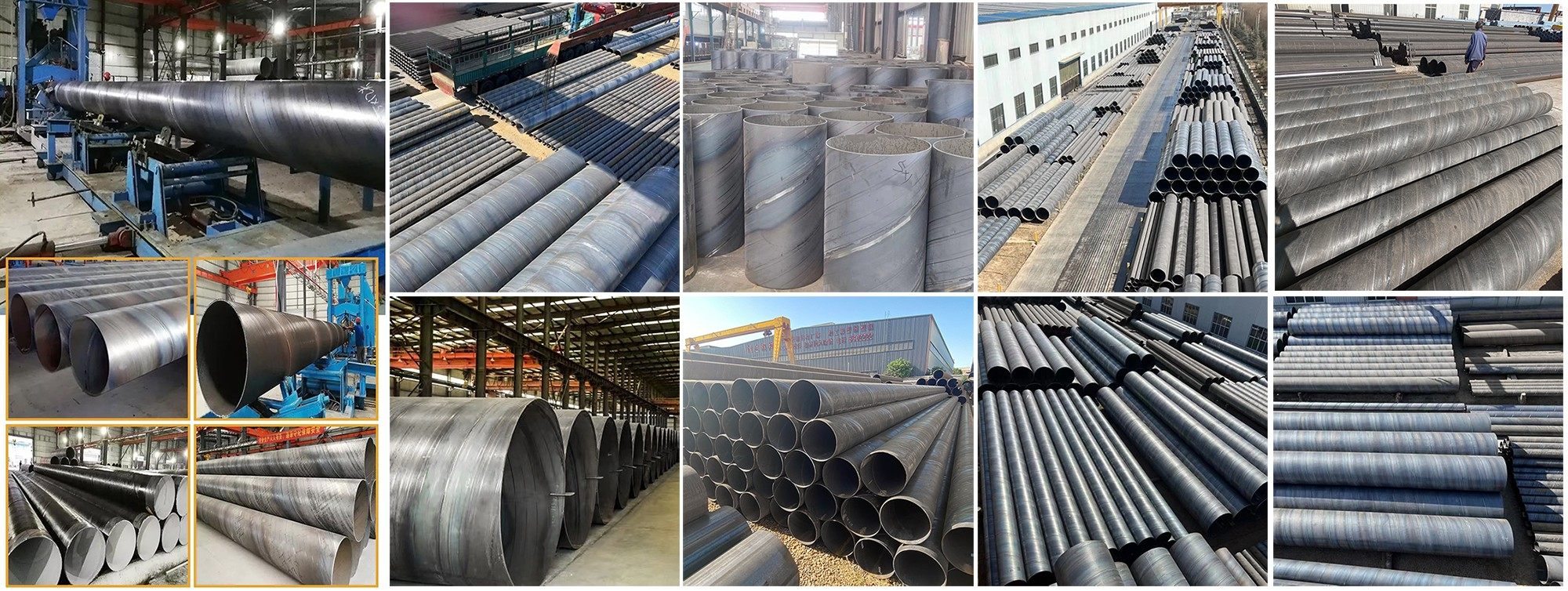

Product Show

Submerged arc welding is an important welding method. Its inherent advantages include stable welding quality, high welding productivity, no arc light and little smoke, making it an ideal choice in the production of important steel structures such as pressure vessels, pipe section manufacturing, box beam and column manufacturing. The strength of SSAW spiral welded pipes is generally higher than that of straight seam welded pipes. Welded pipes with larger diameters can be produced from narrower billets, and welded pipes with different diameters can also be produced from billets of the same width.

Product Features

① High quality material

The qroducts are made of high-quality materials with guaranteed quality and firm and reliable quality

②What is spiral welded pipe?

Spiral pipe, also known as spiral steel pipe or spiral welded pipe. is a low carbon structural steel or low alloy structural steestrip accorcing to a certain helix angle (called forming angle) rolled into a tube, and then welded joints made of, It can be produced with a narrow strip of large diameter steel pipe.

③What is the advantage of spiral welded pipe?

Straight seam welded pipe production process is simple. high production effciency, low cost. rapid develop- ment. The strength of the spiral welded pipe is generally higher than that of the straight seam welded pipe, and the pipe with larger diameter can be produced with the narrow billet. The pipe with different diameter can also be pro- duced with the same width.

Spiral steel pipe is made by steel coil, extrusion forming under the normal temperature, then taken the technology of double wire and double-faced submerged-arc welded. Spiral steel pipe, also known as spiral or helix spiral steel pipe, is a low-carbon steel or low-alloy structural steel strip at a certain helix angle (called molding angle) rolled into a tube, and the tube is made of welded joints It can be produced with a narrow strip of large diameter pipe.

Application

1.Petroleum,Chemical enterprise, super heater of boiler, heat exchanger

2.High temperature resistant transmission fluid pipe in power station
3.Ship with pressure pipe
4.The exhaust purification devices
5.Construction and ornament ect.

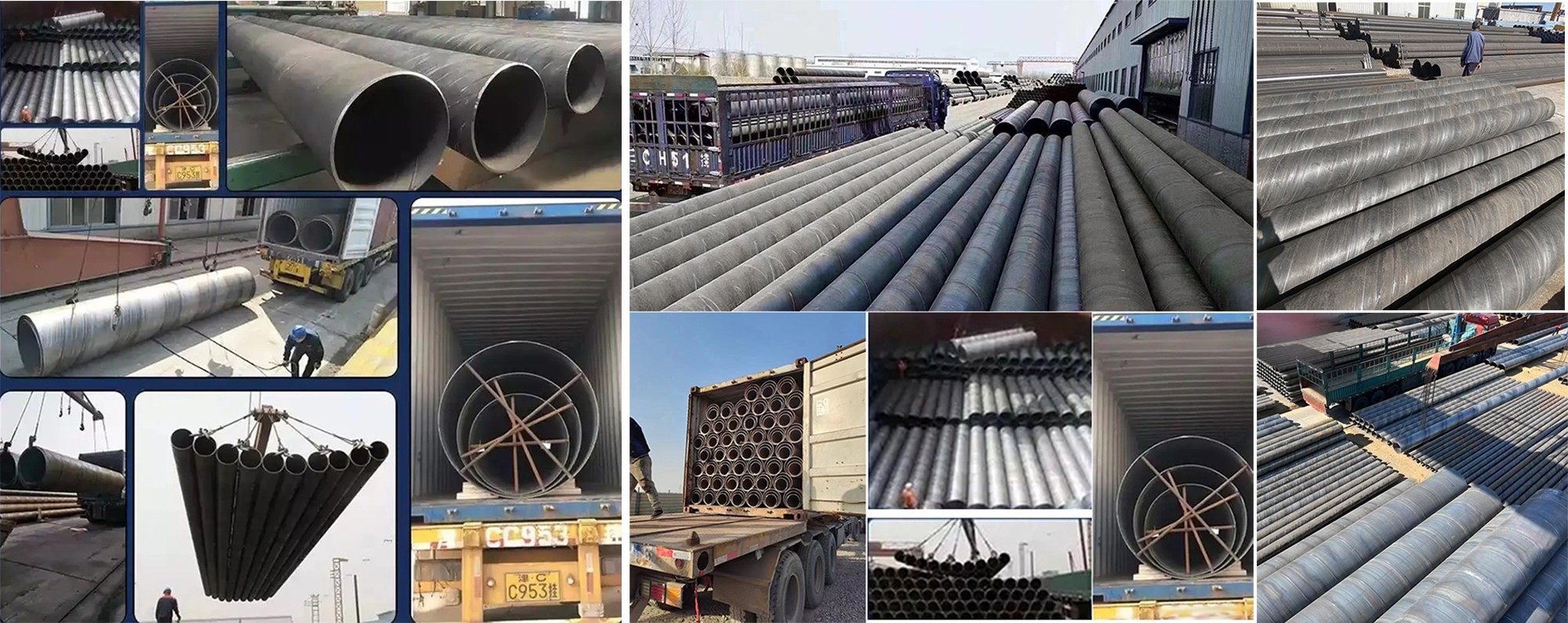

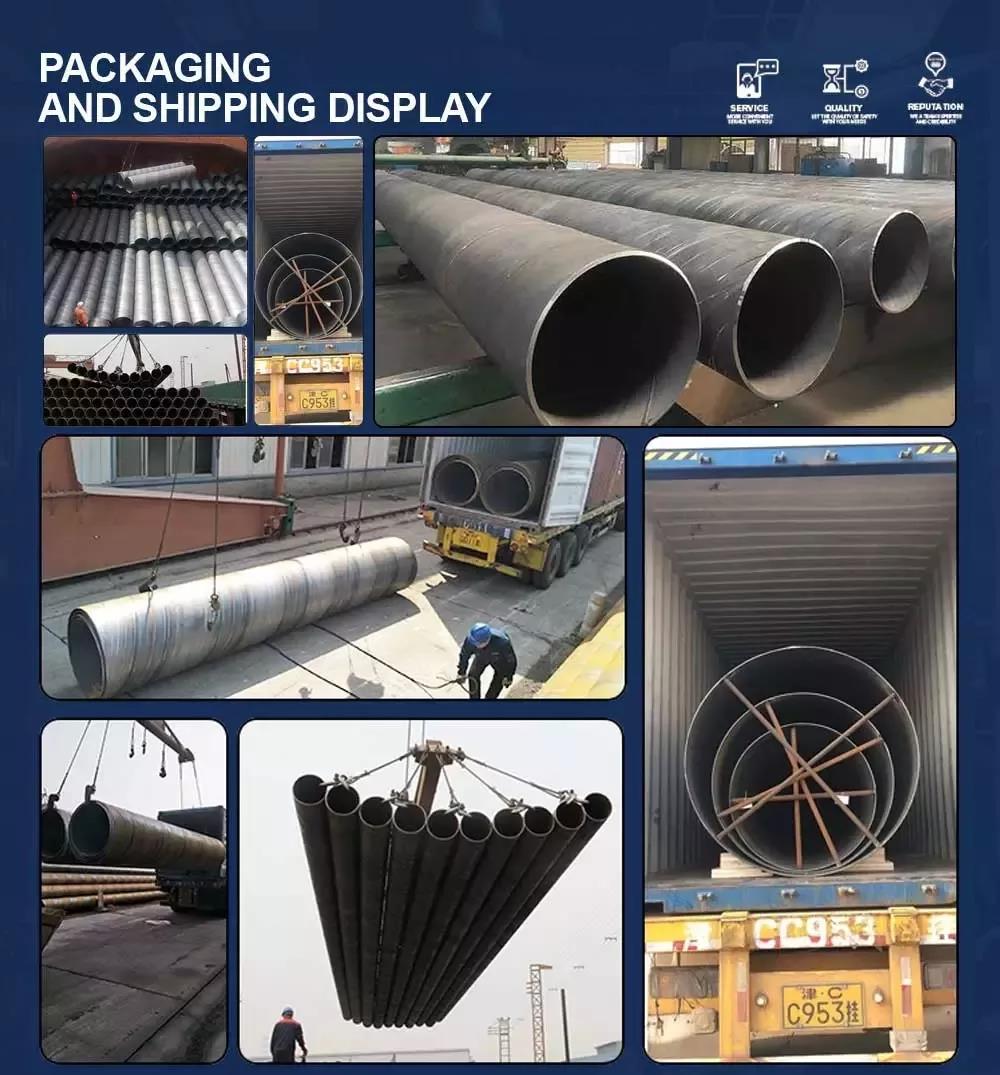

Packing & Delivery

1.Package :Standard seaworthy package(wooden boxes package and other package or as your requirements).

2.Shipping:We will arrange the shipment within 7---15 working days after we get the order

We have long-term cooperation with many experienced shipping companies and will find the most suitable mode of transportation for you.

Customer Feedback

FAQ

Q1: Are you a carbon steel pipe manufacturer or trading company?
A: We are an integrated manufacturer and trading company with our own factory and multiple production lines, providing stable supply and project-oriented procurement support for international customers.

Q2: What is spiral welded steel pipe?
A: Spiral welded steel pipe is manufactured by forming a steel strip into a spiral shape and welding the seam continuously. It is widely used for water pipelines, oil & gas transportation, piling and structural applications.

Q3: What standards and grades are available?
A: We can supply spiral welded pipes according to applicable standards such as API 5L, ASTM, EN, DIN and GB, with grades selected according to project requirements.

Q4: What sizes of spiral welded steel pipes can you provide?
A: We supply various outside diameters, wall thicknesses and pipe lengths. Available dimensions depend on the applicable standard and customer specifications.

Q5: What applications are spiral welded steel pipes suitable for?
A: They are commonly used for water transmission, oil & gas pipelines, piling, structural projects, drainage systems and other large-diameter pipeline applications.

Q6: How is the weld quality of spiral welded pipes controlled?
A: Weld quality is controlled through applicable production and inspection procedures. Depending on the specification, inspections may include visual examination, dimensional inspection, hydrostatic testing and non-destructive testing.

Q7: What inspection and certification documents can you provide?
A: We can provide MTCs and relevant inspection documents covering chemical composition, mechanical properties, dimensions, hydrostatic testing and other specified requirements.

Q8: Can you provide customized spiral welded steel pipes?
A: Yes. Pipe diameter, wall thickness, length, steel grade, end finish, coating and other specifications can be customized according to project requirements.

Q9: Do you accept third-party inspection?
A: Yes. Third-party inspection can be arranged according to customer or project requirements before shipment.

Q10: What is the MOQ and lead time?
A: MOQ and lead time depend on the pipe specifications, quantity, production schedule and inspection requirements. Specific terms are confirmed with each quotation.

Q11: How can I get a quotation for spiral welded steel pipes?
A: Please provide the required standard, steel grade, outside diameter, wall thickness, length, quantity, coating requirements and delivery destination. We will prepare a quotation based on your specifications.
